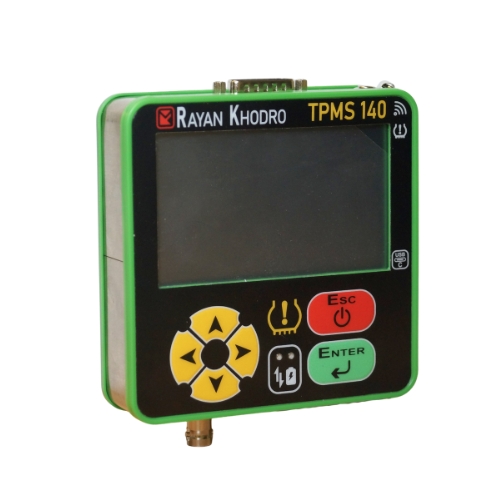

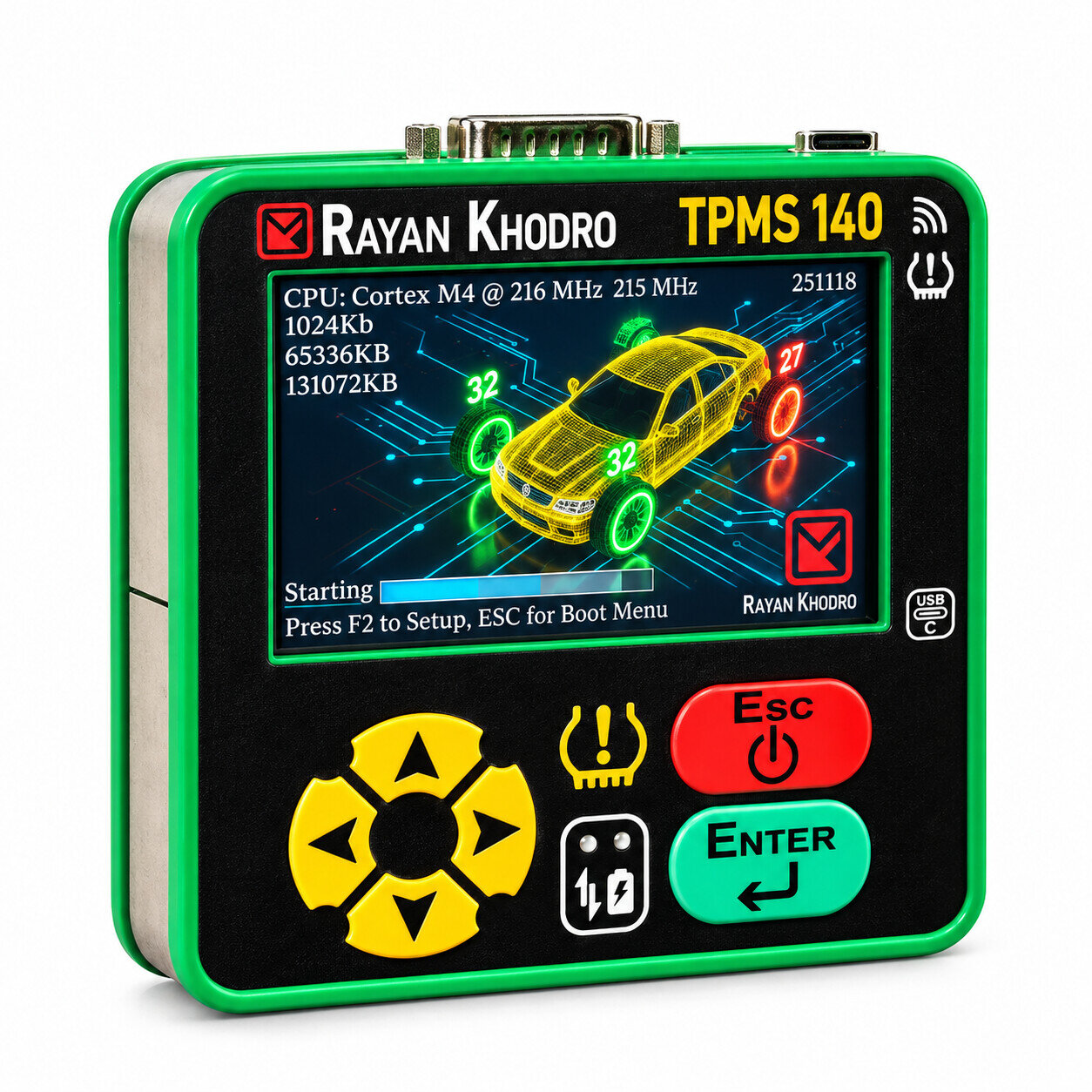

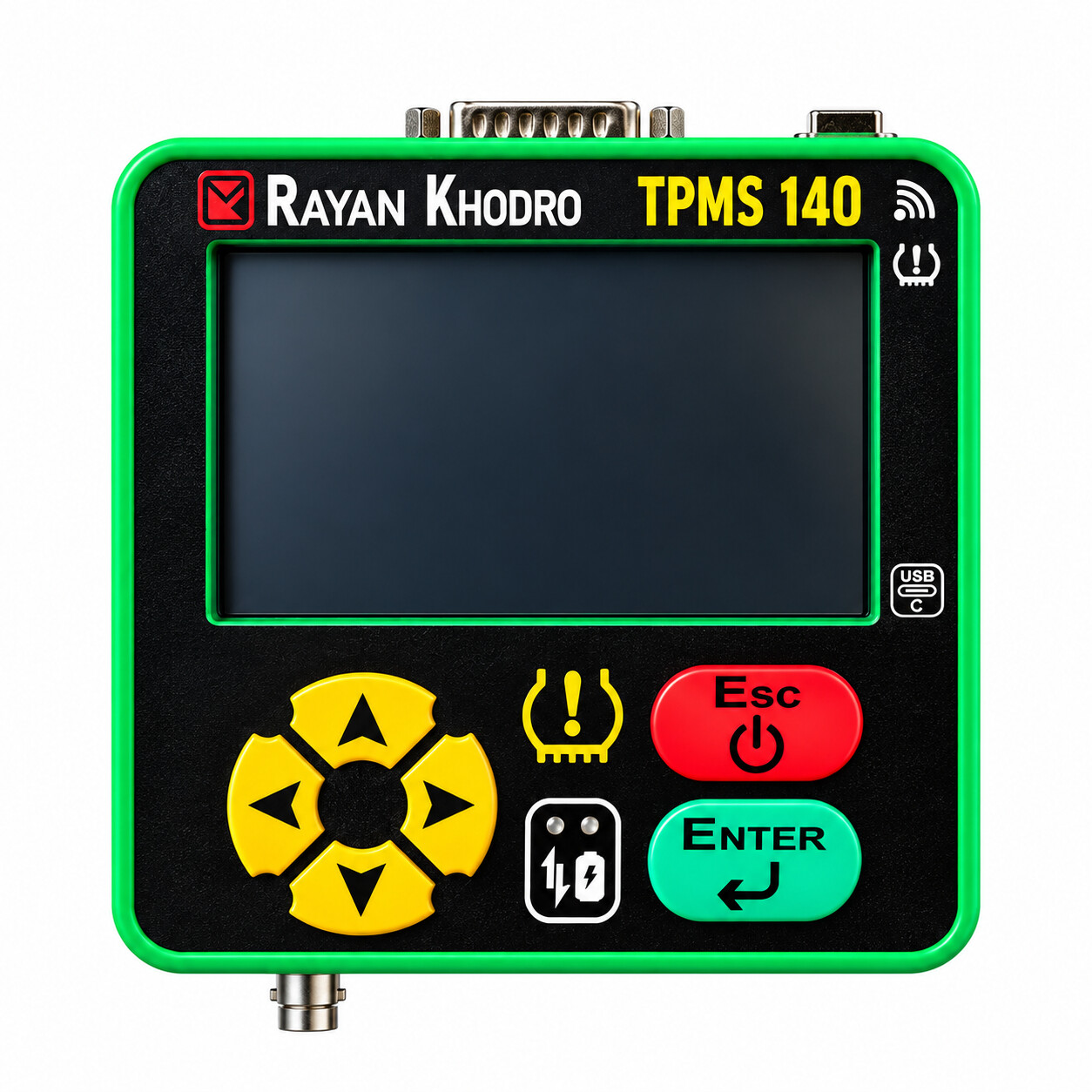

Tire Pressure Monitoring Sensor Tester and Programmer – Model TPMS-140
An advanced and multifunctional tool designed for testing, activating, and programming tire pressure monitoring system (TPMS) sensors. The device receives and analyzes tire sensor data with high accuracy and fast response time, displaying real-time pressure, temperature, and signal strength for each sensor.
In addition to its main functions, TPMS-140 features a Trigger mode to activate idle sensors and supports Indirect TPMS Calibration. These features make the diagnosis and replacement of faulty or low-battery sensors easier and more precise for technicians.
For software updates and data storage, the device can be easily connected to a network via Wi-Fi. It is an ideal choice for automotive service centers, production lines, and R&D departments.
Applications
- Programming, testing, and activation of TPMS sensors for domestic and imported vehicles
- Real-time display of pressure, temperature, and signal strength for each sensor
- Trigger function to wake up inactive sensors
- Calibration of indirect TPMS systems
- Replacement of faulty or low-battery sensors with new ones
- Wireless communication with server for data logging and software updates
Advantages
- Fully localized design compatible with domestic and imported vehicles
- User-friendly graphical interface with fast operation
- High accuracy in reading and transmitting data
- Supports multiple communication protocols including RF, LIN, and CAN
- Expandable software for adding new vehicle models
- Software upgradable via Wi-Fi
Technical Specifications
| Model: |
TPMS-140 |
| Display: |
4.3-inch color LCD |
| Power Supply: |
Built-in rechargeable battery (12V input or USB-C) |
| Application: |
Testing, activating, and programming TPMS sensors for various vehicles |
| Update Method: |
Wi-Fi |
| Dimensions: |
124 × 120 × 32 mm |
| Weight: |
375 g |
| Operating Temperature: |
-10°C to +60°C |
| Warranty: |
24 months (hardware and software support) |
