MWA2402

Vehicle Wheel Alignment System

This device uses image processing and machine vision technology to measure and display vehicle wheel angles with high speed and accuracy.

• Utilizes machine vision technology in the measurement algorithm to achieve high speed and precision.
• Measures main wheel angles along with other vehicle physical data: wheel distance, front and rear axle distance, wheel diameter, and axle deviation.
• Measures toe and camber angles with just one forward and backward movement of the vehicle.
• Simultaneous display of all four wheel angles with 0.1° accuracy.
• Automatic wheel runout compensation by software.
• Detects tire size mismatch.
• Database of over 25,000 vehicles: American, European, Asian, and Iranian (supports more than 95% of global vehicles and all domestic cars).
• Easy addition of new vehicles to the database (via new vehicle test or Rayankhodro website).
• No need for re-calibration.
• Operable under various ambient lighting conditions.
• Graphical display of measurement results.
• Easy installation, low maintenance, no training required.
• Optional printed reports for customers (printer optional).
• Displayable on TV or projector screen.
• Suitable for both light and heavy vehicles.
• Compatible with four-post lift, scissor lift, or service pit (usage with service pit is recommended).

Features for Steering Adjustment

• Equipped with lightweight, durable targets and clamps.
• Unique and robust clamp design: four high-hardness steel jaws with fast installation mechanism, suitable for steel or aluminum rims.
• Optional clamp conversion for larger rims up to 24 inches.
• Aluminum alloy turntable with hard-bearing ball slip mechanism.
• Chrome-coated brake and steering locks.

Additional Capabilities

• Simultaneous angle measurement during adjustment
• Real-time measurement system (no interruption)
• Measures vehicle dimensions: wheel distance, axle distance, wheel radius, and positioning
• Automatic wheel deviation compensation (Runout)
• Optional display on TV or projector for training

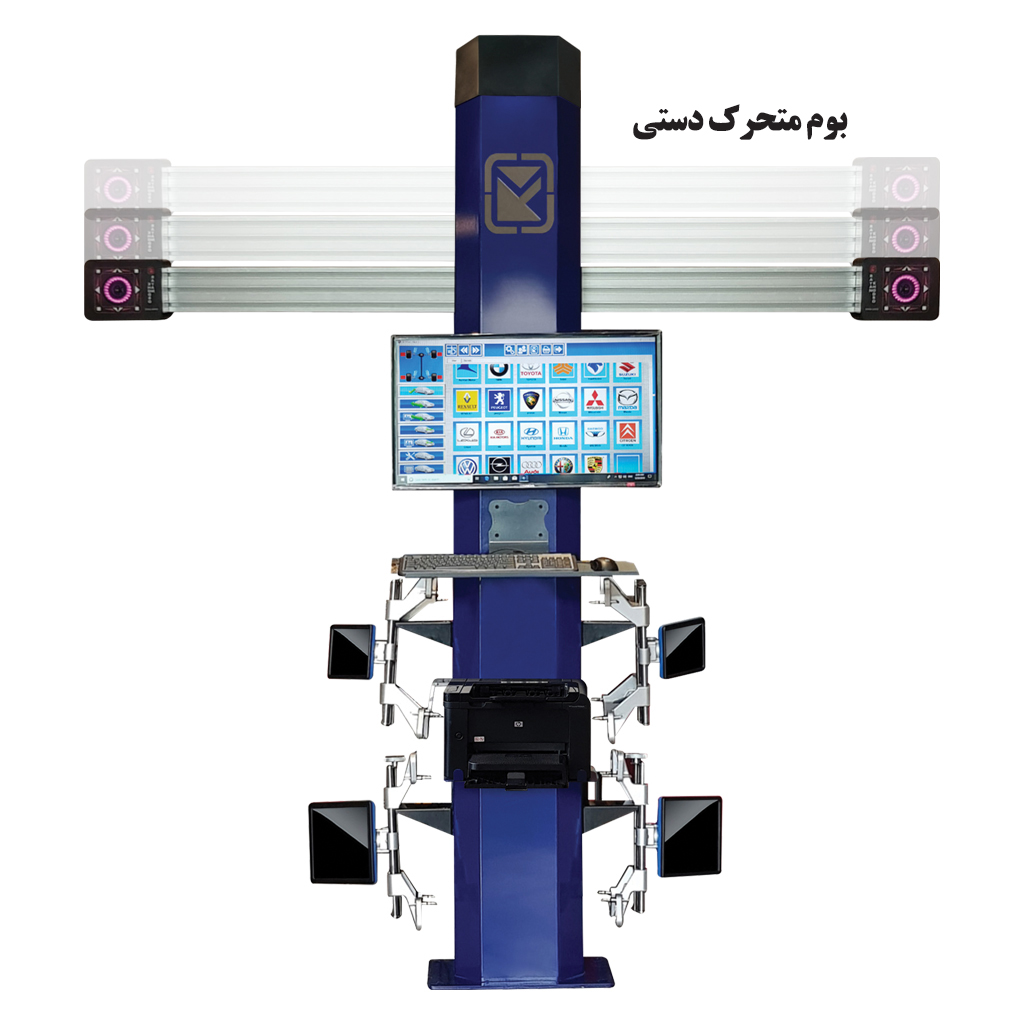

• Installation on fixed post, movable boom, or relocatable structure (suitable for production lines)

Vision System

• High-resolution infrared cameras (2402: 8.3Mpix, 2401: 5Mpix, 2400: 1.3Mpix)
• Equipped with infrared filters and emitters
• LEDs for operation guidance

Targets and Wheel Clamps

• Lightweight, durable targets and clamps
• Beautiful and unique clamp design: four high-hardness steel jaws, fast installation mechanism, suitable for steel or aluminum rims without damage
• Convertible clamps for larger rims up to 24 inches
• Infrared filter-equipped targets for higher image quality (Model 2401)

Software Specifications

• Large database with information on over 20,000 vehicles worldwide (American, European, Asian, and Iranian)
• Ability to add or edit new vehicle data
• Toe and Camber calculation: Static and Dynamic
• Dynamic: requires vehicle movement, high calculation accuracy, and runout compensation
• Static: for quick tests without moving the vehicle, ideal for Quick Service and production lines

Measured Parameters
